Ball Valve Face To Face Dimensions
Ball valves face-to-face and end-to-end dimensions (excluding top entry ball valve dimension) in millimeters for Class 150–2500 as per API 6D.

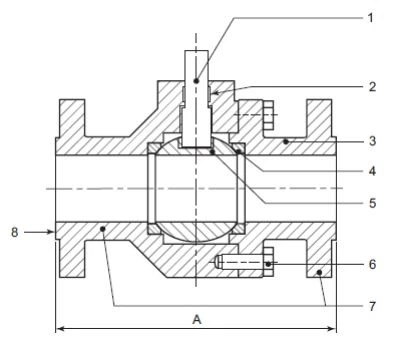

Ball valve face to face dimension
Ball valve end to end dimensions
Class 150 Ball Valve Face to Face Dimension
Dimensions in millimeters
| NPS | DN | Long Pattern, Full Bore and Reduced Bore | Short Pattern, Full Bore, and Reduced Bore | ||||
| Raised Face | Weld End | Ring Joint | Raised Face | Weld End | Ring Joint | ||
| A | B | C | A | B | C | ||
| Class 150 | |||||||
| 2 | 50 | 178 | 216 | 191 | — | — | — |
| 21/2 | 65 | 191 | 241 | 203 | — | — | — |
| 3 | 80 | 203 | 283 | 216 | — | — | — |
| 4 | 100 | 229 | 305 | 241 | — | — | — |
| 6 | 150 | 394 | 457 | 406 | 267 | 403 | 279 |
| 8 | 200 | 457 | 521 | 470 | 292 | 419 | 305 |
| 10 | 250 | 533 | 559 | 546 | 330 | 457 | 343 |
| 12 | 300 | 610 | 635 | 622 | 356 | 502 | 368 |
| 14 | 350 | 686 | 762 | 699 | — | — | — |
| 16 | 400 | 762 | 838 | 775 | — | — | — |
| 18 | 450 | 864 | 914 | 876 | — | — | — |
| 20 | 500 | 914 | 991 | 927 | — | — | — |
| — | — | — | — | — | — | — | — |
| 24 | 600 | 1067 | 1143 | 1080 | — | — | — |
| 26 | 650 | 1143 | 1245 | — | — | — | — |
| 28 | 700 | 1245 | 1346 | — | — | — | — |
| 30 | 750 | 1295 | 1397 | — | — | — | — |
| 32 | 800 | 1372 | 1524 | — | — | — | — |
| 34 | 850 | 1473 | 1626 | — | — | — | — |
| 36 | 900 | 1524 | 1727 | — | — | — | — |
Class 300 Ball Valve Face to Face Dimension
Dimensions in millimeters
| NPS | DN | Long Pattern, Full Bore and Reduced Bore | Short Pattern, Full Bore, and Reduced | ||||
| Raised Face | Weld End | Ring Joint | Raised Face | Weld End | Ring Joint | ||
| A | B | C | A | B | C | ||
| Class 300 | |||||||
| 2 | 50 | 216 | 216 | 232 | — | — | — |
| 21/2 | 65 | 241 | 241 | 257 | — | — | — |
| 3 | 80 | 283 | 283 | 298 | — | — | — |
| 4 | 100 | 305 | 305 | 321 | — | — | — |
| 6 | 150 | 403 | 457 | 419 | — | — | — |
| 8 | 200 | 502 | 521 | 518 | 419 | 419 | 435 |
| 10 | 250 | 568 | 559 | 584 | 457 | 457 | 473 |
| 12 | 300 | 648 | 635 | 664 | 502 | 502 | 518 |
| 14 | 350 | 762 | 762 | 778 | — | — | — |
| 16 | 400 | 838 | 838 | 854 | — | — | — |
| 18 | 450 | 914 | 914 | 930 | — | — | — |
| 20 | 500 | 991 | 991 | 1010 | — | — | — |
| 22 | 550 | 1092 | 1092 | 1114 | — | — | — |
| 24 | 600 | 1143 | 1143 | 1165 | — | — | — |
| 26 | 650 | 1245 | 1245 | 1270 | — | — | — |
| 28 | 700 | 1346 | 1346 | 1372 | — | — | — |
| 30 | 750 | 1397 | 1397 | 1422 | — | — | — |
| 32 | 800 | 1524 | 1524 | 1553 | — | — | — |
| 34 | 850 | 1626 | 1626 | 1654 | — | — | — |
| 36 | 900 | 1727 | 1727 | 1756 | — | — | — |
Class 600-900 Ball Valve Face to Face Dimension
Dimensions in millimeters
| NPS | DN | Full Bore, and Reduced Bore | Full Bore, and Reduced Bore | ||||
| Raised Face | Raised Face | Raised Face | Raised Face | Weld End | Ring Joint | ||
| A | A | A | A | B | C | ||
| Class 600 | Class 900 | ||||||
| 2 | 50 | 292 | 292 | 292 | 368 | 368 | 371 |
| 2 1/2 | 65 | 330 | 330 | 330 | 419 | 419 | 422 |
| 3 | 80 | 356 | 356 | 356 | 381 | 381 | 384 |
| 4 | 100 | 432 | 432 | 432 | 457 | 457 | 460 |
| 6 | 150 | 559 | 559 | 559 | 610 | 610 | 613 |
| 8 | 200 | 660 | 660 | 660 | 737 | 737 | 740 |
| 10 | 250 | 787 | 787 | 787 | 838 | 838 | 841 |
| 12 | 300 | 838 | 838 | 838 | 965 | 965 | 968 |
| 14 | 350 | 889 | 889 | 889 | 1029 | 1029 | 1038 |
| 16 | 400 | 991 | 991 | 991 | 1130 | 1130 | 1140 |
| 18 | 450 | 1092 | 1092 | 1092 | 1219 | 1219 | 1232 |
| 20 | 500 | 1194 | 1194 | 1194 | 1321 | 1321 | 1334 |
| 22 | 550 | 1295 | 1295 | 1295 | — | — | — |
| 24 | 600 | 1397 | 1397 | 1397 | 1549 | 1549 | 1568 |
| 26 | 650 | 1448 | 1448 | 1448 | 1651 | — | 1673 |
| 28 | 700 | 1549 | 1549 | 1549 | — | — | — |
| 30 | 750 | 1651 | 1651 | 1651 | 1880 | — | 1902 |
| 32 | 800 | 1778 | 1778 | 1778 | — | — | — |
| 34 | 850 | 1930 | 1930 | 1930 | — | — | — |
| 36 | 900 | 2083 | 2083 | 2083 | 2286 | — | 2315 |
Class 1500-2500 Ball Valve Face to Face Dimension
Dimensions in millimeters
| NPS | DN | Full Bore and Reduced Bore | Full Bore, and Reduced Bore | ||||
| Raised Face | Weld End | Ring Joint | Raised Face | Weld End | Ring Joint | ||
| A | B | C | A | B | C | ||
| Class 1500 | Class 2500 | ||||||
| 2 | 50 | 368 | 368 | 371 | 451 | 451 | 454 |
| 2 1/2 | 65 | 419 | 419 | 422 | 508 | 508 | 514 |
| 3 | 80 | 470 | 470 | 473 | 578 | 578 | 584 |
| 4 | 100 | 546 | 546 | 549 | 673 | 673 | 683 |
| 6 | 150 | 705 | 705 | 711 | 914 | 914 | 927 |
| 8 | 200 | 832 | 832 | 841 | 1022 | 1022 | 1038 |
| 10 | 250 | 991 | 991 | 1000 | 1270 | 1270 | 1292 |
| 12 | 300 | 1130 | 1130 | 1146 | 1422 | 1422 | 1445 |
| 14 | 350 | 1257 | 1257 | 1276 | — | — | — |
| 16 | 400 | 1384 | 1384 | 1407 | — | — | — |
| 18 | 450 | 1537 | — | 1559 | — | — | — |
| 20 | 500 | 1664 | — | 1686 | — | — | — |
| 22 | 550 | — | — | — | — | — | — |
| 24 | 600 | — | — | 1972 | — | — | — |
| 26 | 650 | 1943 | — | — | — | — | — |
